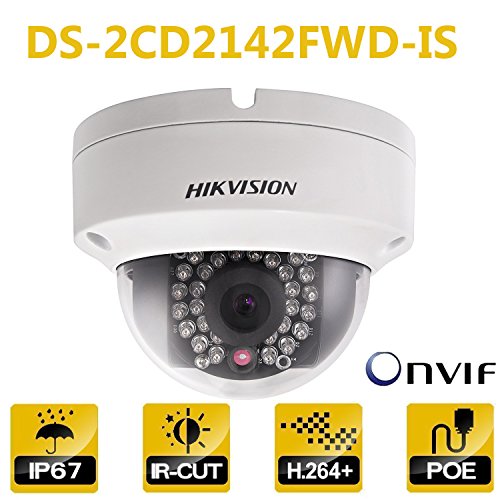

Hikvision Dome IP Camera DS-2CD2142FWD-IS 4MP 2.8Mm Lens PoE Network Security Camera HD 1080P Day/Night IR To 30M Wide Dynamic Range Ip67 IK10 H.264 Onvif English Version

Camera Image Sensor:1/3″ Progressive Scan CMOS Min. Illumination:0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR Shutter time:1/3 s to 1/10,000 s Lens:2.8mm @ F2.0 Lens Mount:M12 Adjustment Range:Pan: 0° ~ 355°, Tilt: 0° ~ 75°, Rotation: 0° ~ 355° Day& Night:IR cut filter with auto switch Wide Dynamic Range:120 dB Digital noise reduction:3D DNR

Camera

Image Sensor:1/3″ Progressive Scan CMOS

Min. Illumination:0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR

Shutter time:1/3 s to 1/10,000 s

Lens:2.8mm @ F2.0

Lens Mount:M12

Adjustment Range:Pan: 0° ~ 355°, Tilt: 0° ~ 75°, Rotation: 0° ~ 355°

Day& Night:IR cut filter with auto switch

Wide Dynamic Range:120 dB

Digital noise reduction:3D DNR

Compression Standard

Video Compression:H.264/MJPEG/H.264+

H.264 code profile:Main Profile

Video bit rate:32Kbps~16Mbps

Dual Stream:Yes


Max. Image Resolution:2688 × 1520

Frame Rate:50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720)

60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720)

Image Settings:Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser

BLC:Yes, zone configurable

ROI:Support

Network

Network Storage:NAS (Support NFS,SMB/CIFS), ANR

General Function:One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering, Anonymous access

System Compatibility: ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI

Interface

Audio:1-ch 3.5 mm audio in (Mic in/Line in)/out interface (-S model)

Communication Interface:1 RJ45 10M / 100M Ethernet interface

Alarm:1x alarm I/O *only for -S models

On-board storage:Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Reset Button:Yes

General

Operating Conditions:-30 °C ~ 60 °C (-22 °F ~ 140 °F)Humidity 95% or less (non-condensing)

Power Supply:12 VDC ± 25%, PoE (802.3af Class3)

Power Consumption:Max. 5W

Impact Protection:IK10

Weather Proof:IP67

Product Features

  • CLEAR PICTURE: Distortion free, picture with quality Stunning HD 4MP(1080P) Video at 30fps per second video streaming. Record and Playback via local 128GB microSD Card, ONVIF NVR, FTP Upload, SD Card Recording, Mobile APP Recording, PC Recording
  • IP67 SUPER WATERPROOF GRADE: IP67 super dustproof and waterproof, no matter windy, raining, or sand storming. Indoor/Outdoor Weatherproof Camera Housing – You can install the cameras indoors and outdoors to cover your home in all areas. Who can be more waterproof? Leading peer technology, perfect production process, interference, longer lifetime.
  • LONGER NIGHT VISION: With Infrared LED, night vision up to 91 feet. Long distance makes you see further and bigger. It also enables a high-quality of day and night surveillance. It supports POE and 12V / 1A-2A power supply(without power supply)
  • EXCELLENT COMPATIBILITY: Supports remote viewing via iOS/Android mobile devices, Windows PC, Apple Mac system and web browsers (IE,Chrome supported).
  • NOTE: If You have some questions, You can contact us (Email: tonycamera@yahoo.com). Thanks a lot.
